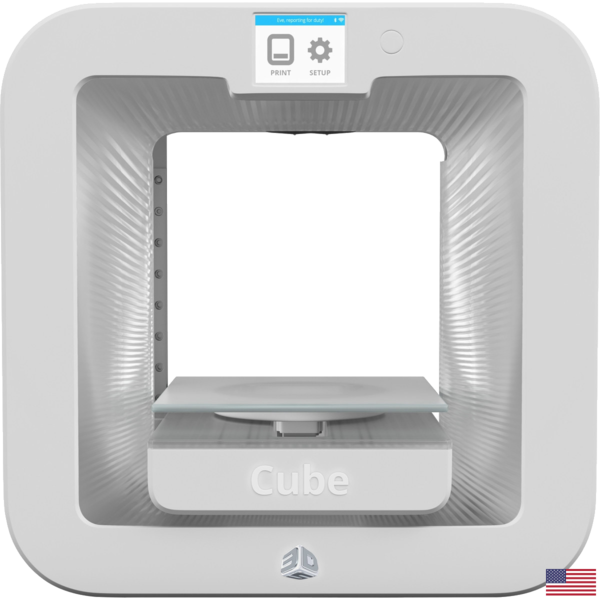

3D Cube Pro Printer
Details
3D Printing. Real. Pro.
Manufacturer: 3D Systems, Inc.
Manufacturer Part Number: 401397-00
Manufacturer Website Address: http://www.3dsystems.com
Brand Name: 3D Systems
Software:
All CubePro printers include complimentary conversion software. This application converts your 3D model into layered slices (G-code), ready for printing on your machine.
Other features and uses of CubePro software include:
Basics:
Clear, familiar and easy-to-use interface
Scaling, rotating and movement of parts on a simulated print bed
Proven default settings for all CubePro 3D printers
Ability to create custom profiles as needed
Imperial/metric conversion available
Built-in STL file verification
Combined part and tool path viewer
Profiles for multiple material/support materials
Windows Requirements: 32bit Or 64 Bit Operating Systems:
Windows 7
Windows 8
Windows 8.1
Windows is required for ad-hoc WiFi print job submission – if not already installed, the Cube software will automatically install the Microsoft .NET 4.0 framework
Tech Specs:
Z-AXIS RESOLUTION: 0.100mm (0.004" / 100 microns)
LAYER THICKNESS: 70 microns, 200 microns and 300 microns for fast mode. Available for all three models.
PRINT TOLERANCE: X and Y axis ± 1% dimension or ± 0.2mm (0.008" / 200mm microns) whichever is greater. Z axis ± half the processed z resolution. Shrinkage and warpage can occur on models and is purely geometry dependent.
PRINT SPEED EXTRUDED VOLUME: Maximum 15mm (9/16") per second and polymer dependent
POWER REQUIREMENTS: 100 - 240v AC
MAXIMUM OPERATING TEMPERATURE AT EXTRUDER TIP: 536°F / 280°C
SUPPORT MATERIAL: PLA / ABS / dissolvable natural PLA
SUPPORT REMOVAL: Break away supports with pliers or cutters or just fingers where appropriate. PLA plastic is soluble in sodium hydroxide solution used with a heated ultrasonic cleaner (care is required with this option)
